In the realm of high-precision motion control systems, the Harmonic Drive stands out for its remarkable accuracy, compactness, and torque capacity. At the heart of this innovative gearing mechanism lies a critical component — the Wave Generator. This element is not just a part of the assembly; it is the core that defines the unique functionality and efficiency of the Harmonic Drive system.

What Is a Harmonic Drive?

A Harmonic Drive is a type of strain wave gear known for its ability to deliver zero backlash, high torque density, and exceptional positioning accuracy. It consists of three primary components:

1. Wave Generator

2. Flexspline

3. Circular Spline

The interaction between these three components produces smooth, precise motion that is highly valued in robotics, aerospace systems, automation, and industrial machinery. Among these, the Wave Generator initiates the entire deformation process that enables harmonic motion transmission.

Role of the Wave Generator in Harmonic Drive Systems

The Wave Generator is the driving element of the harmonic gear set. It typically comprises an elliptical cam and a flexible bearing assembly. When the elliptical cam rotates inside the flexible bearing, it causes the Flexspline — a thin-walled, cup-shaped gear — to deform elliptically. This deformation allows the external teeth of the Flexspline to engage with the internal teeth of the Circular Spline at two opposite points.

As the Wave Generator continues to rotate, the deformation moves around the circumference, resulting in a smooth and precise transfer of motion. Because the number of teeth in the Flexspline is slightly fewer than that of the Circular Spline, a small difference in rotation occurs, creating the unique reduction ratio of the Harmonic Drive.

Construction and Design of a Wave Generator

The Wave Generator generally consists of two main parts:

• Elliptical Disc (Cam): The rigid inner body that defines the shape of the wave.

• Flexible Bearing: A specially designed ball bearing that fits tightly around the cam and transmits the deformation to the Flexspline.

This compact structure makes the Wave Generator lightweight, reliable, and capable of achieving high reduction ratios in minimal space.

Key Design Features Include:

• Elliptical profile for uniform deformation.

• High-precision bearing for smooth, consistent motion.

• Compact design allowing integration into small drive systems.

• Durable materials capable of withstanding repeated strain cycles.

How the Wave Generator Enhances Performance

The Wave Generator’s role is not just mechanical—it directly influences the overall performance of the Harmonic Drive. Here’s how:

1. Zero Backlash:
   Because of the continuous engagement of gear teeth, the system eliminates backlash, providing consistent torque and positional accuracy.

2. Compact High-Torque Output:
   The elliptical motion allows a large number of teeth to engage simultaneously, producing higher torque in a smaller volume.

3. High Gear Ratio:
   Even with a simple three-component design, harmonic drives achieve large gear reduction ratios (typically 30:1 to 320:1) due to the Wave Generator’s function.

4. Smooth Motion Transmission:
   The sinusoidal engagement pattern ensures vibration-free, quiet, and efficient motion transfer.

5. Durability and Low Maintenance:
   The precision design reduces friction and wear, increasing service life and reliability in demanding environments.

Applications of Wave Generator Harmonic Drives

Because of their precision, compactness, and zero backlash, harmonic drives are widely used in various advanced engineering domains:

• Robotics: For joint actuators and motion control requiring accuracy and torque density.

• Aerospace: In satellite mechanisms and flight control systems where reliability is non-negotiable.

• Medical Equipment: For robotic surgery, MRI-compatible drives, and diagnostic systems.

• Industrial Automation: Used in CNC machinery, semiconductor manufacturing, and precision assembly systems.

• Defense and Optics: For targeting systems, gimbals, and telescopic positioning mechanisms.

The Wave Generator’s unique ability to convert rotational motion into smooth, harmonic deformation makes it a critical component in all these applications.

Innovation in Wave Generator Technology

Recent advancements have refined Wave Generator designs for even better performance:

• Lightweight Materials: Aluminum and titanium alloys improve the strength-to-weight ratio.

• Optimized Elliptical Profiles: Enhance the uniformity of stress distribution across the Flexspline.

• Improved Bearing Technology: Hybrid ceramic bearings reduce friction and heat buildup.

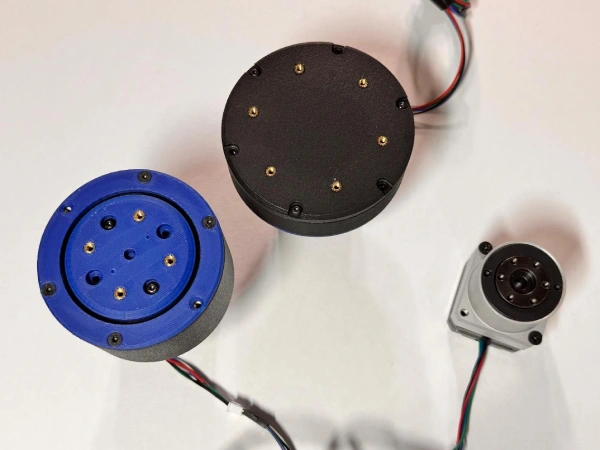

• Integration with Electric Actuators: Modern harmonic drive actuators combine motors, encoders, and wave generators into a single compact unit, enhancing system integration.

These innovations contribute to higher precision, longer life, and greater energy efficiency, aligning with the growing demand for compact automation solutions.

Design Considerations for Engineers

When selecting or designing a Wave Generator Harmonic Drive, engineers must evaluate factors like:

• Required torque and reduction ratio

• Load conditions and duty cycle

• Accuracy and backlash requirements

• Operating environment and temperature

• Maintenance accessibility

At Me Virtuoso, engineers can access design tools, calculators, and educational resources that simplify the process of choosing or developing the right harmonic drive setup for specific industrial applications.

Conclusion

The Wave Generator is truly the heart of the Harmonic Drive, converting rotational energy into harmonic motion with extraordinary precision. Its innovative design enables unparalleled torque, compactness, and zero-backlash performance—qualities essential in modern robotics, aerospace, and automation industries.

As industries push toward miniaturization and enhanced accuracy, understanding the Wave Generator’s role becomes vital for engineers and designers. Platforms like Me Virtuoso empower professionals with insights, tools, and resources to harness this technology effectively and design the next generation of precision motion systems.
