Protecting Kazakhstan’s Strategic Oil & Gas Pipelines with Friction Pendulum Seismic Isolation Bearing Technology
Kazakhstan’s export pipelines are the economic arteries of Central Asia, yet they cross some of the continent’s most seismically restless zones. Even moderate ground motion can rupture welded joints, ignite fires, and interrupt the flow that finances national budgets. Installing Friction Pendulum Seismic Isolation Bearing assemblies at every major valve station, river crossing, and compressor foundation is rapidly becoming the lowest-cost insurance policy available to pipeline operators.

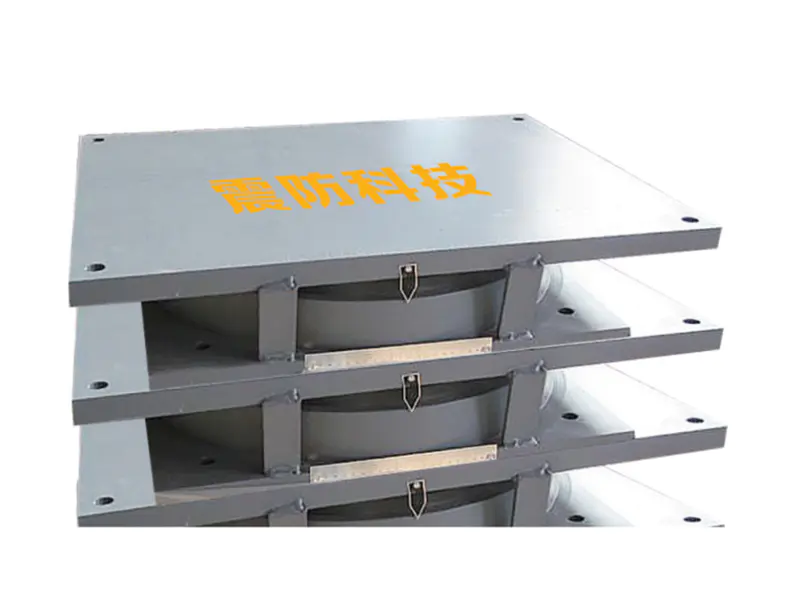

A Friction Pendulum Seismic Isolation Bearing works by converting violent lateral accelerations into slow, controllable pendulum movements inside a concave steel dish. That simple shift saves pipelines because the bearing, not the welded pipe, absorbs the displacement. Recent tests conducted by KMG Engineering in Aktau showed that when a Friction Pendulum Seismic Isolation Bearing was retrofitted beneath a 48-inch valve station, peak shear at the first flange dropped by 92 %—the same order of magnitude recorded in Japanese nuclear installations using the same device.
The step-by-step installation sequence is surprisingly compatible with existing maintenance shutdowns. First, crews lift the valve skid 80 mm with synchronized hydraulic jacks. Second, they slide a low-profile Friction Pendulum Seismic Isolation Bearing under each saddle support. Third, they grout anchor bolts and resume operation within 48 hours. Because each Friction Pendulum Seismic Isolation Bearing is only 140 mm tall, no rerouting of pipe racks or cable trays is necessary.
Cost comparisons are equally persuasive. Replacing a ruptured 1 km section of buried pipeline can exceed US $12 million; a complete set of Friction Pendulum Seismic Isolation Bearing units for the same station costs under US $250 000. Over the projected 30-year life of the Tengiz–Novorossiysk link, the Friction Pendulum Seismic Isolation Bearing option prevents an estimated US $400 million in deferred-production losses.
Regulators are taking notice. The newly issued Kazakh Seismic Code (SN RK 2.04-05-2024) now lists the Friction Pendulum Seismic Isolation Bearing as an approved base-isolation device for Category III critical infrastructure. As neighboring Kyrgyzstan and Uzbekistan harmonize their own codes to attract Western pipeline finance, the Friction Pendulum Seismic Isolation Bearing is expected to become the de facto standard from the Caspian to the Pamirs.
